AED HR-701 Plus

real-time ECG monitoring
video/voice prompts
Bluetooth data transfer
automatic self-testing

Request Special Product Arrangements More Details

Get a personalized quote for this product. Our experts will contact you within 24 hours.

Ready to send out in 3-5 Business Days

Product Description Technical Details Maintenance Contract

Product Description

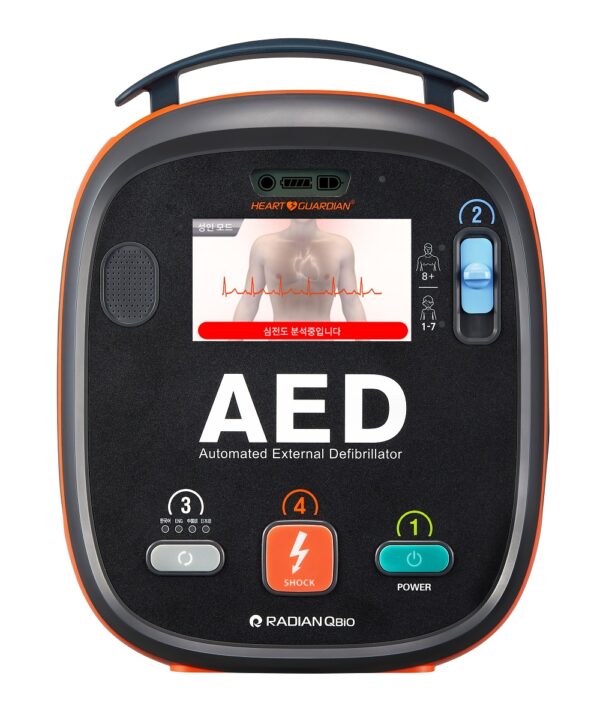

The Heart Guardian HR-701 Plus is a portable Automated External Defibrillator (AED) with a monitor, designed for ease of use with real-time ECG monitoring and video/voice prompts. It automatically analyzes the patient's ECG and advises whether an electric shock is necessary. The device operates on battery power and follows CPR guidelines from the American Heart Association (AHA).

Nearly every procedure for AED operation is guided through visual and audio instructions, making it suitable for both laypersons and professionals. The HR-701 Plus features a compact design and includes advanced functionalities such as Bluetooth for data transfer and automatic monthly self-tests to ensure reliability.

Technical Details

Specification	Details
Model	HR-701 Plus
Operation Type	Semi-automatic
Waveform	Biphasic Truncated Exponential (BTE)
Shock Energy (Adult)	150J ±15%, 200J ±15%, 250J ±15%
Shock Energy (Child)	50J ±15%
Dimensions	280(L) x 222(W) x 74.4(H) mm
Weight	2.2 kg (without battery/case)
Display	4.3-inch TFT, 480 x 272 pixels
Battery Type	LiMnO2 (12V DC 6.4A)
Battery Shelf Life	4 years
Pad Size	110x120mm (1.8m cable)
IP Rating	IP55
ECG Analysis	FFT-based automatic ECG analysis
Data Storage	10MB (approx. 100 ECG logs)
Languages	English, Tagalog, Korean, Chinese (varies by region)

Maintenance Contract

The HR-701 Plus performs automatic self-tests monthly to check battery status, electrode pads, and internal circuitry. The battery has a shelf life of 4 years in standby mode, while the electrode pads last 2 years from shipment. Replacement parts (battery BT-701, pads P-701) should be sourced from authorized distributors. The device should be stored in temperatures between 0°C to 40°C (operating) and -20°C to 60°C (storage/transport). Humidity should be maintained between 30-95% (non-condensing) during operation.
